6,15-dihydroanthrazine-5,9,14,18-tetrone
| Name： |
6,15-dihydroanthrazine-5,9,14,18-tetrone |
English
Name： |
C.I. Vat Blue 4; 6,15-dihydronaphtho[1,2-a:12-h]phenazin-5,9,14,18-tetrone; pigment blue 60 |
| CAS NO： |
81-77-6 |
| Formula： |
C28H14N2O4 |
| MW： |
442.4218 |
| InChI： |
InChI=1/C28H14N2O4/c31-25-13-5-1-3-7-15(13)27(33)21-17(25)9-11-19-23(21)29-20-12-10-18-22(24(20)30-19)28(34)16-8-4-2-6-14(16)26(18)32/h1-12,29-30H |
Molecular
structure： |
 |
| Density： |
1.487g/cm3 |
| Melting point： |
470-500℃ |
| Boiling Point： |
740.2°C at 760 mmHg |
| Flash Point： |
253.9°C |
| Water solubility： |
<0.1 g/100 mL at 21℃ |
| Vapor Pressure： |
8.92E-22mmHg at 25°C |
|
| Properties:： |
Appearance: paste or powder blue or blue- black fine particles
Solubility: slightly soluble in hot chloroform , o-chlorophenol , quinoline , insoluble in acetone , pyridine ( heat ) , alcohol , toluene , xylene and acetic acid ; brown in concentrated sulfuric acid was diluted blue precipitate ; alkali of sodium hydrosulfite solution was blue , acid blue into red .
Hue or shade : red blue
The relative density of 1.45 - 1.54
Bulk density / (lb / gal) :12.1-12 .8
Melting point / ℃: 300
The average particle diameter / μm: 0.08
Specific surface area / (m2 / g) :40-57
pH value / ( 10% slurry ) :6.1 - 6.3
Oil Absorption / (g/100g) :27-80
Opacity: Translucent Type

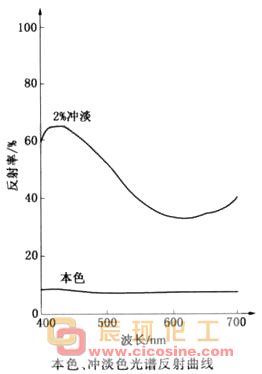

Reflection curve : Diffraction curve:
Reflection curve：
 |
| Usage:： |
Product formulations grade , red blue red close ε-CuPc , excellent light fastness, weather , high transparency and solvent fastness , Cromophtal Blue A3R specific surface area of 40m2 / g.
For automotive coatings and other metal decorative paints , and even light than CuPc; dilute the color is still in excellent durability , but lower than α- type CuPc color strength is lower ;
also used for coloring plastics , thermal stability of polyolefin 300 ℃ / 5min (HDPE sample 1/3SD color difference ΔE just under 300,200 ℃ handled 1.5 ) ; flexible PVC excellent resistance to migration, light fastness of 8 (1/3SD);
also used Mint grade ink .
Mainly for the automotive original finish. |
|
